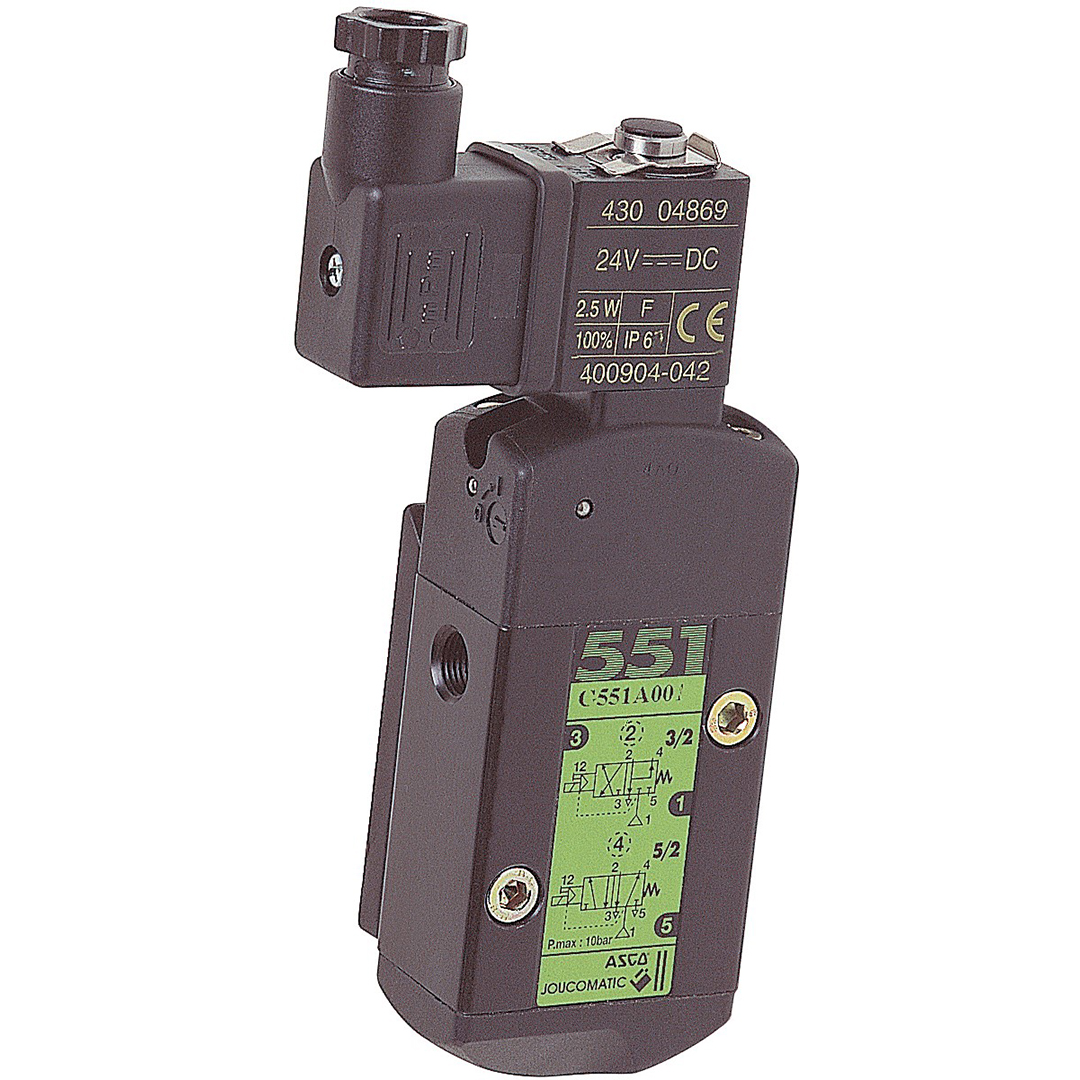

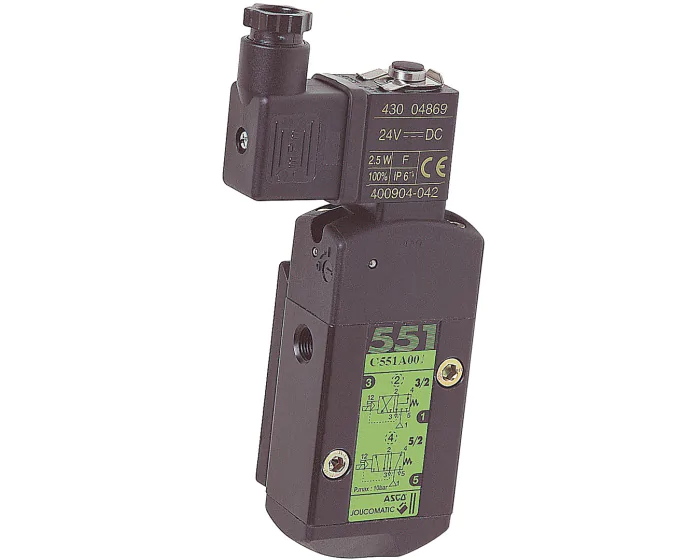

Namur solenoid pilot valve 4164 monostable ASCO 551 3/2-5/2 for precise control of pneumatic actuators. It offers seamless switching between 3/2 and 5/2 configurations.
| Specification | Value |
|---|---|
| Maximum delta P (bar) | 10 |
| Minimum delta P (bar) | 2 |
| ATEX compatible | No |
| Connector | T22 |
| Fluid | Air / Neutral gases / Filtered |
| Protection index (IP) | IP 65 |
| Kv (m³/h) | 0.60 |
| Body material | Aluminium |
| Pilot (NAMUR) | Asco |
| PS (bar) | 10 |
| Voltage | 230 V AC |
| TS max (°C) | 60 |
| TS min (°C) | -25 |
| Solenoid pilot valve type | monostable |
| Solenoid pilot valve ways | 3/2 - 5/2 |
| Warranty period | 1 year |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Aluminium 230 V AC | 041640 | S1000641 |
€65.24
(excl. btw)
|
add to cart |
| Aluminium 24 V AC | 041641 | S1000642 |
€65.24
(excl. btw)
|
add to cart |
| Aluminium 110 V AC | 041642 | S1000643 |
€65.24
(excl. btw)
|
add to cart |
| Aluminium 24 V DC | 041644 | S1000644 |
€65.24
(excl. btw)
|
add to cart |
